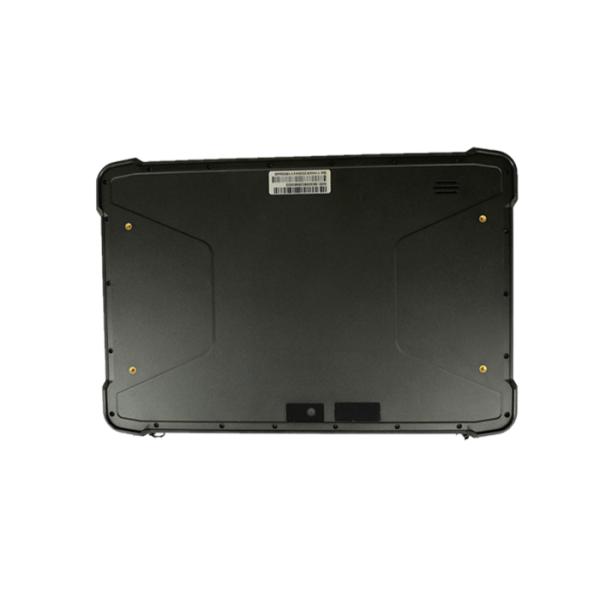

Tablet Barcode Scanner Rugged Tablet With Barcode Scanner Industrial Rugged Tablet Pc 10 Inch BT611
◪ 10.1 inch IP67 rugged tablet with option Barcode scanner
◪ Windows 10 Home,Quad core
◪ Corning Gorrila glass and Double injection housing to make it shockproof
2GB RAM /32GB ROM memory
◪ Dual band WIFI,BT 4.0,2G/3G wireless transmit
Support GPS and GLOANSS navigation
◪ Double camera 2.0M+5.0M
◪ Built in 8000mah big battery
Option vehicle mount with RS232 port
Scenario: Customization Apps for special use.
| Product Outlook |
| Type | Details | Standard Configuration |
| Product Form | Type | Rugged Tablet |
| Dimension | 275.5*187.5*22mm |
| Weight | Device unit: 1014g
Unit with giftbox and standard accessories:1990g
Docking:290g,8000mAh battery:250g |
| Device Color | Black |
| LCD | Screen Size | 10.1 inch 16:10 |
| Resolution | 800 (RGB)*1280 |
| Brightness | 250 cd/m2 |
| TP | Touch Panel | 10 points Capacitive,G+G,Rigidity: above 7H-Anti-scratch,TP thickness:1.1mm,COF |
| Camera | Front | Front:2.0MP with chargeing indicator light |
| Rear | Rear: 5.0MP |
| Speaker | Built-in | Embedded 8Ω/0.8W waterproof speaker x 1 |
| Mic | | Sensitivity:-42db, output resistance:2.2kΩ |
| Battery | Type | Lithium-ion polymer battery , pluggable, dimension: 21.8*92.3*9.5mm |
| Capacity | 3.7V/8000mAh |
| Endurance | 8hrs(default 50% volumn,default200nit,play 1080P HD video) |
| System Hardware Configuration |
| Type | Details | Description |
| CPU | Type | Intel cherry Trail Z8350 |
| Speed | 1.33Ghz-1.92GHz |
| GPU | Type | Intel HD Graphic |
| RAM | DDR3L | 2GB |
| ROM | Emmc | 32GB |
| G_sensor | Built-in | Gravity acceleration sensor |
| Network Connections |
| Type | Details | Descriptions |
| WIFI | WIFI Module | WIFI 802.11(a/b/g/n) Frequency 2.4G+5.8G dual band WIFI, |
| Bluetooth | Built-in | BT4.2 (BLE) class 1 Transmission distance :10m |
| 3G | Option | IC:H350-A30 WCDMA(900/2100MHz)HSDPA 7.2Mbps,HSUPA 5.76Mbps Huawei MU609 WCDMA Band 1/2/5/8
GSM/GPRS/EDGE: 850 MHz/900
MHz/1800 MHz/1900 MHz |
| GPS | option | Support :GLONASS,QZSS,GPS; Capture sensitivity: -160 dBm；Cool Start Time:<30second,Hot start time:<28seconds,frequency:0.25 Hz … 10 MHz |
| NFC | option | NXP NFC 13.56MHz Support ISO/IEC 14443A/14443B/15693/mifare protocol,Card reading distance:4cm |
| Data Collection |
| Type | Details | Description |
| 2D Barcode Scanner | Option | Honeywell N3680 Hardware decoder Optical Resolution:1280*800；5mil Scan speed:50/s Symbol system:PDF417, MicroPDF417, Data Matrix Inverse
Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin |
| Interface Configuration |
| Type | Details | Descriptions |
| TF slot | Extensive External Memory | Support SDHC/SDXC x1 max:128G |
| USB Interface | Extend external memory and data transfer | USB 2.0*1 (Host)for windows Android OTG x1 |
| Earphone Jack | Audio Output | ∮3.5mm standard earphone jack x1 |
| DC Jack | Power | DC 5V 3A ∮3.5mm Power connector x1 |
| HDMI | Video Output | HDMI 1.4a Type C x1 |
| Extensive Slot | pogo Pin | 12pin Pogo Pin x1 Option |
| Standard Accessories |
| Type | Details | Description |
| OTG Cable | OTG Cable | USB OTG to MICRO USB cable length:45mm |
| USB Cable | USB Cable | USB to micro 5P L=1.2M 4core aluminum foil shield cable |
| Power Adaptor | Standard | AC100V ~ 240V,50Hz/60Hz output DC 5V/3A USA Standard CE approval |
| Software Configuration |
| Type | Details | Description |
| Operation System | OS version | windows 10 Home or Pro or IOT Default language:English |
| Product Certificate |
| Type | Details | Description |
| Certificate System | IP67 | IP67 Report: Water resistance:IP-X7,Dust resistance:IP-6X Report ID no.:SET2015-07677
a.Inner Nozzle diameter:6.3mm； b. water speed:12.5±0.625L/min；
c. Water Pressure:adjust according to water volumn；
d.Central part of water volumn
e.Spray time in surface of panel:about 1min；f.test time:at least 3min；
g.distance between nozzle and panel surface:2.5～3m.
After test,there is no water leakage in sample. |
| CE-NB | Y |
| MIL-STD-810G | Y |
| Battery | UN3803,MSDS,IEC62133 |
| Reliability |
| Type | Details | Descriptions |
| Product Reliability | Drop Height | 100cm composite wood floors, in operation status |
| Operate Temperature | ‘-10 °C to 50 °C (-20 °C to 60 °C optional) |
| Store Temperature | ’-30 °C to 70 °C |
| Humidity | Humidity: 95% Non-Condensing |
| Accessories | Standard | 1 USB cable,1 charger,1 handstrap, |
| | Optional | Docking station |
Bright Alliance Services
We focus on rugged tablet and handheld pda over 8 years.
We can support completely Free SDK and technical support for you.
ODM/OEM customization services according to your requirements.
12 months warranty for your devices and other parts. and 6 months for the batteries. Free maintenance of the devices and part of accessories replacement in the warranty .if out of the warranty, you'll have to pay the basic cost for them.
And experienced sales have better communication to get what you need and save your time
FAQ
Question 1: What's your MOQ?
The MOQ of rugged tablet is 1 piece.
Question 2: How long is the delivery time?
The delivery time of rugged android tablet goods is different from quantities:
for samples, It's about 3-5 working days;
If 100~500 pcs, it's about 10--20 working days;
If More than 500 pcs, It's about 20-30 working days.
Question 3: Would you like to supply 1 sample for testing?
Yes, Of course
Question 4: What's for payment term and delivery term ?
1.It's generally 40%-100% TT in advance for all orders. Meanwhile, Paypal or West Union is acceptable.
2. Exw Shenzhen or FCA HK as Trade Term.
